Forged, Turned & Components

Cold Forging : 6 MM to 20 MM Diameter & Length Upto 150 MM
                      : Profile forging Wt. 0.050 Kg. to 0.75 Kg.

Screw Press Forging : 6 MM to 52 MM Diameter & Length upto 2000 MM
                                  : Profile forging Wt. 0.10 Kg to 7.00 Kg.

Drop Forging : Components Wt.. .35 Kg. to 15.00 Kg.

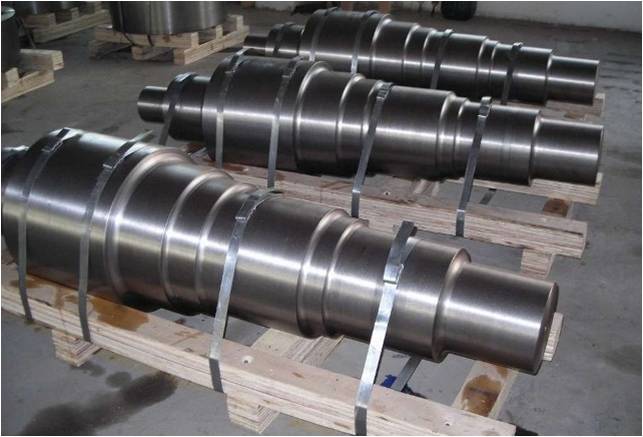

Open Die Forging : Shafts- Diameter upto 350 MM, Minimum forging reduction ratio 3.5:1, Length upto 5000 Mtrs.
                               : Blanks- Diameter upto 1200 MM
                               : Combination Open/Semi Die profiles upto 150 Kg.

Surface Coating - Zinc, Mech. Zinc, Hot Dip Galvanizing, Nickel, Copper, PTFE, Xylan®, TEFLON®

Heat-Treatments - Normalizing, Annealing, Through Hardening, Case hardening, Induction Hardening, Solution Annealing Heat-treatment Capability Length upto 2.2 Mtr.

Steel Types - Carbon Steels, Alloy Steels, Austenitic/ Ferrite / Martensite Stainless Steels, Inconel ®, Monel ® Modified Chemistry
                       We supply above components duly heat-treated , Finish Machined & Grinded.
                       Machining Capablity :
                       Conventional Lathe : Maximum Diameter : 1000 MM
                       Maximum Length : 5000 MM

CNC Turning - Diameter : Minimum Diameter : 10 MM
                                        Maximum Diameter : 450 MM
                                        Maximum Length : 1600 MM
                                        VMC : Maximum Size 600x800x2000 MM
